NAB will see the Innovision Optics vertical and horizontal Kamtrax slider front up for the punters to play with.

Innovision Kamtrax Slider

Here is the Press Release:

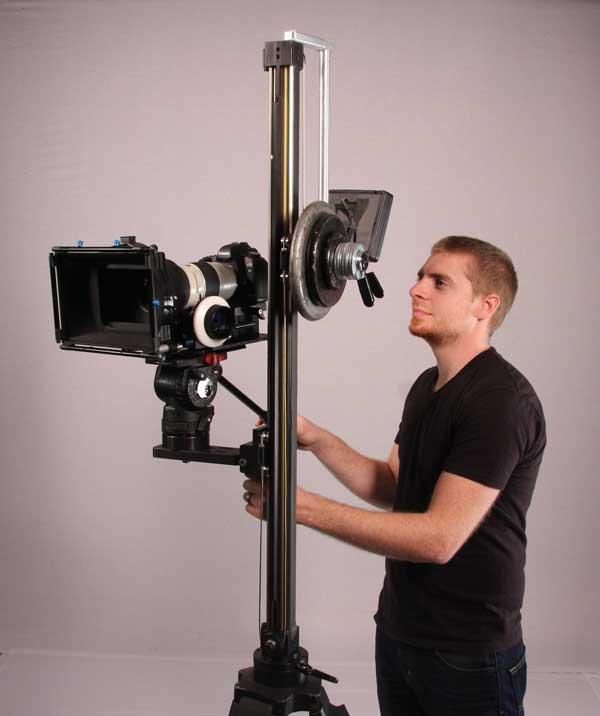

Innovision Optics, known for game-changing optical and moving camera devices, announces the debut of the new Kamtrax vertical and horizontal camera slider. Kamtrax is the first slider on the market to provide weightless vertical tracking camera movement.

To add vertical travel production value through an easy to set up accessory, Kamtrax provides weightless and ultra-smooth vertical camera movement via sealed ball-bearing wheels running along an anodized stainless steel track. Kamtrax is available in 3 and 6 foot lengths. Both ends can be attached to various mounts including 100mm ball, Mitchell plate or High Hat. The bottom of the track features a heavy-duty ball-bearing ring which allows the track to pivot around endlessly.

A continuous cable surrounds the track end-to-end, providing control of camera travel up and down the track. Camera packages weighing up to 40 pounds (18.2 kg) can be mounted on Kamtrax. To render the camera weightless, the same amount of weight in barbell disks are attached to the other side of the continuous cable. The camera can then be raised or lowered using the power of a single finger, and the camera can be positioned at any point up or down the track without being locked off. The camera platform can swing down 90-degrees and be locked off at any point in between for a Dutch tilt.

The camera package can be mounted directly to the camera platform via 3/8” or ¼” threaded bolt, or with a pan and tilt head between camera and platform to provide pan and tilt control. Camera operators can view camera video output via their own flat-panel monitor mounted to the Kamtrax by an optional bracket.

Alternatively, by using the Kamtrax Horizontal Kit, the track can be oriented horizontally in minutes to provide a side-to-side slider with the same smooth travel. Angular travel can also be achieved through the optional Angle Slider Kit.

Optional durable travel cases are available for the 3 foot and 6 foot Kamtrax, as well as for its accessory kits.

For more info head on over to Innovision Optics.
