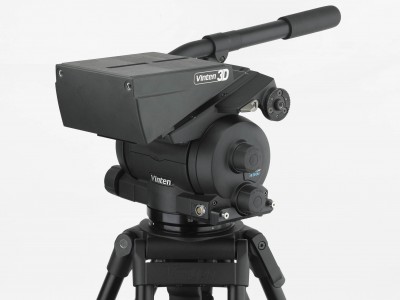

The Vinten 3D wedge adaptor is designed to facilitate the proper balancing of under/through beamsplitter 3D rigs on Vinten pan and tilt heads.
By offsetting the head’s level position by a few degrees the balance mechanism produces a back-torque when the camera is level, this enables the centre of gravity of the payload (3D rig, lenses and cameras) to be forward of the tilt axis.
Key features and benefits:
Balances rigs which cannot be mounted to a conventional head in a balanced position due to physical restrictions.
Allows more clearance for the under-slung camera therefore increases downward tilt available.
Quick release of rig, wedge assembly from head.
Height: 10 cm / 4”
Length: 20.5 cm / 8 ”
Width: 19 cm / 7.5 ”
Weight: 3.2 kg / 7.1 lbs
Capacity Range: 0 – 120 kg / 265 lbs
The Vinten 3D wedge adapter balances rigs which cannot be mounted to a conventional head in a balanced position. It is designed to facilitate the proper balancing of under/through beamsplitter 3D rigs and allows more clearance for the under-slung camera, which increases the downward tilt available. The new 3D wedge adapter offsets the head’s level position by a few degrees so the balance mechanism produces a back-torque when the camera is level, which enables the centre of gravity of the payload to be forward of the tilt axis.
The adapter gives users a flexible and cost effective solution as it integrates seamlessly with Vinten’s full range of heads. For OB customers looking to make their truck fleets dual purpose, the adapters allow the option of shooting in 2D and 3D without compromise, removing the need to replace their current inventory of Vinten heads.
The 3D wedge adapter is made its debut at NAB2011 alongside a collection of Vinten’s highly acclaimed and multi award winning top quality camera support solutions. To demonstrate its capabilities, the adapter will be shown with a Vector 950 system set up with a Stereotec Mid-Size Beam splitter.
The Vector 950 is the highest capacity fluid head in the Vinten range and can easily handle the many possible camera system configurations for shooting in S3D. It balances heavy payloads and high centres of gravity with ease, and allows the user to maintain fingertip control over the entire tilt range. The Vector 950 also features the renowned Vinten TF drag system which enables outstanding whip pan control of these heavy, high inertia payloads. It gives operators the ability to focus on shot selection and composition, which is vital for today’s stereo production.
For details pop on over to Vinten.
