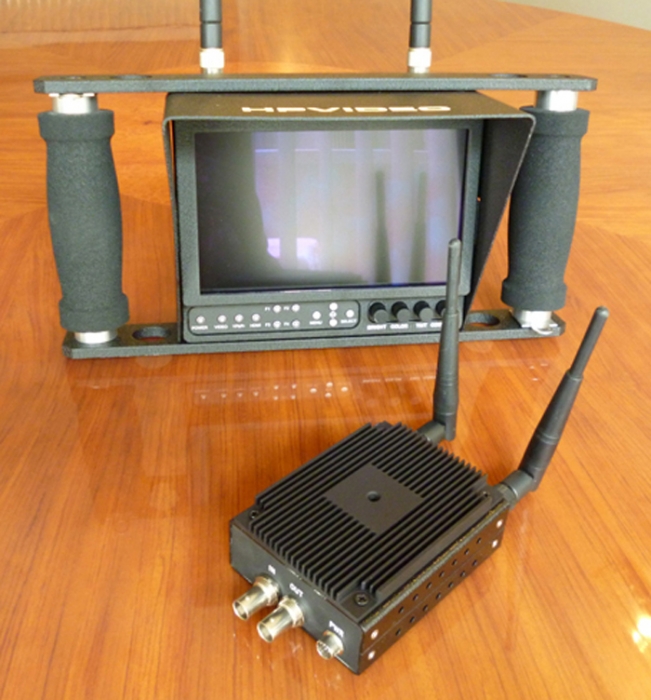

HPVIDEO HP-1007 Wireless Handheld Monitoring System:

HPVIDEO HDSDI WIRELESS HANDHELD MONITOR/RECEIVER AND TRANSMITTER SYSTEM

SPECIFICATIONS:

HD-SDI TRANSMITTER

• HD-SDI INPUT: Auto detects 3G-SDI, HD-SDI or SDI
• INPUT FORMATS: 480i/59.94, 567i/50
1080i/60,1080i/59.94,1080i/50,1080psf/30,1080psf/29.97,1080psf/25,1080psf/24
1080psf/23.98, 1080p/30,1080p/29.97,1080p/25,1080p/24,1080p/23.97,720p/60,720p/59.94,720p/50
1080p/60(Picture only), 1080p/59.94(picture only), 1080p/50(picture only)
• HD-SDI OUTPUT: 3G/HD/SD-SDI Active Loop-Through Output
• ANTENNA INPUTS: 2 X SMA OR TNC CONNECTORS
• ANTENNAS: 2 x 3.5 Db Antennas
• POWER INPUT: 6 Pin, Mail HIROSE Connector (LIKE MODULUS2000/3000).
Modulus2000/3000 power cables works with it.Input DC voltage is 5v to 26v,600mA
HIROSE pin out: Pin #1 Ground
Pin #3 +12v input
Pin #5 +24v input
• FREQUENCY: 5.1-5.9GHz
• UNIT DIMENSIONS: 3.15″(80mm) x 3.9″(100mm) x 1.5″(38mm)
• WEIGHT: 13.7oz (390g)
• LATENCY: < 1 millisecond • AUDIO: 2 Channels Embedded audio • TIME CODE: Embedded Time Code • MOUNTING: A Simple 1/4-20 Thread Camera Hot Shoe Mount. • RANGE: 200-250 Ft Line Of Sight and 100-150 Ft in door. In Sight The Stages, The Range Is Up To 200FT(With 3.5 Db Omni Directional Antennas) • CHANNELS: 10 channels, Automatic select. This was the HP7007S System but shows you the quality of the gear.

WIRELESS HANDHELD MONITOR/RECEIVER

• MONITOR: 7″ LCD Screen
High resolution 800 x 480 LCD panel
Manual Gamma Adjustment
Adjustable Back light
Image Flip
Variety of Markers, including user-adjustable)
False Color On/Off
Peaking Filter On/Off
RGB Check Field / Field Detect
15:9, 16:9, 4:3, Pixel-to-Pixel modes
4 user-configurable function buttons
Scratch Resistant Protective Screen
RGB gain and bias control
• ANTENNA INPUTS: 2 X SMA OR TNC CONNECTORS
• POWER INPUT: 4 PIN XLR connector. Input voltage is 9v to 38v DC, 1.7Amp.
Auto switching from DC input to Battery power.
• BATTERY PLATE: The Wireless Monitor comes Variety of Battery Adapters, SONY “L”,”M”,
Anton Bauer and V-LOK Plates.
The wireless monitor with Sony “M” size Battery Plate, Works Up to 3.5 Hours With SONY Battery
Model NP-Q91D.
• HDMI OUTPUT: The Connector is A Type HDMI connector.
• HD-SDI OUTPUT: 2 x BNC Connectors. Output Signal Formats are:
480i/59.94, 567i/50, 1080i/60, 1080i/59.94, 1080i/50
1080p/30, 1080p/29.97, 1080p/25, 1080p/24, 1080p/23.97,
720p/60, 720p/59.94, 720p/50,1080p/60(Picture only), 1080p/59.94(picture only), 1080p/50(picture only).
The HD-SDI output is active, only when 12v AC/DC power supply is in use.
• CHANNELS: 10 channels, Automatic select.
• LATENCY: < 1 millisecond • FREQUENCY: 5.1-5.9GHz • RANGE: 200-250 Ft Line Of Sight and 100-150 Ft in door. In Sight The Stages The Range Is Up To 200FT(With 3.5 Db Omni Directional Antennas) • MONITOR DIMENSIONS: 7"(17.7mm) X 5.7(14.5mm) X 3.5(9mm),Without Handles • This System is a SINGLE CAST(one transmitter, one receiver) Wireless System. • Boot Up time is 15 second, reconnect 7-8 second. • The Package Includes: 1. HD-SDI Transmitter 2. Handheld Monitor/Receiver 3. 12V power cable for Transmitter, With 4 Pin XLR Connector 4. 12V power cable for Transmitter, With Anton Bauer Connector 5. 4 x 3.5 Gb antennas 6. Camera Hot Shoe Adapter 7. Neck Strap For The Monitor 8. 1550 Pelican Case 6 Month Warranty Introductory / pre order Price $7500.00 See HP Video for more information.
