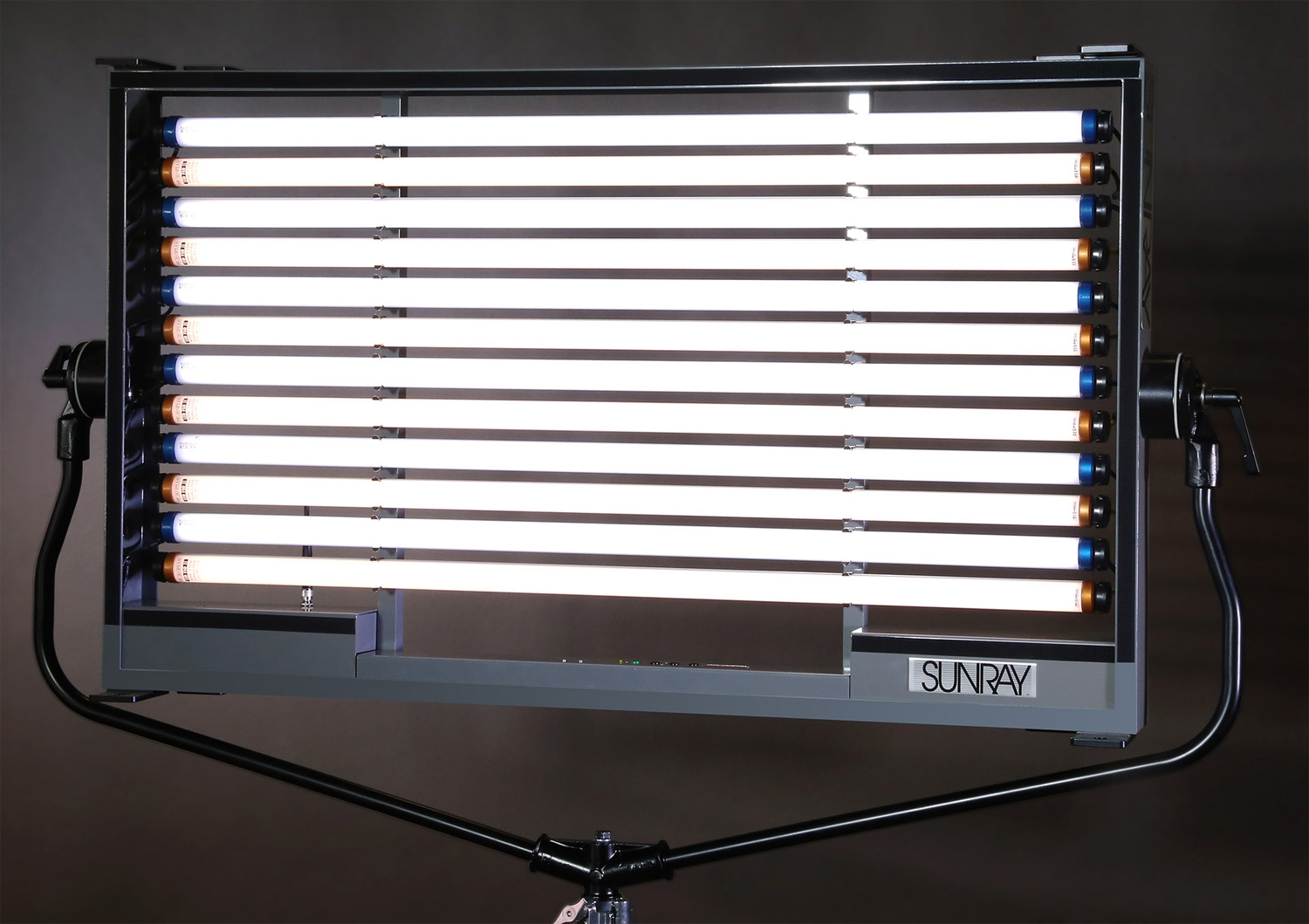

Sunray Translyte LED systems are the latest lighting technology advancement in television and motion picture production from a collaboration between DADCO, LLC and FilmGear, Inc. Crafted into a sturdy aluminum frame, the 6, 12 and 24 tube Translyte LED lighting systems use Filmgear state-of-the-art T12 4-foot LED tubes.

Sunray LED

These large format LED “Hard Body” fixtures feature on-board, two circuit dimmers with local control, dmx or wireless dmx control and can be linked with conventional dimmer systems. The two circuit wiring harness with locking end caps allows blending of Kelvin temperatures when using both daylight and tungsten tubes.

Flimgear has developed state-of-the-art 3200K and 5600K LED tubes with clear or frosted lenses. (Clear lenses will provide approximately 50% more output than the frosted style). These LED tubes are fully dimmable with a smooth curve to less than ten percent with no Kelvin shift.

The Translyte design allows diffusion or bounce material to be attached by velcro on the front of fixture and solid or silk skirts, in addition to fabric egg crates. The fixtures can be stacked on top of each other by bolting the feet together or they can be bolted together side by side offering multiple options. Systems are supplied with a bail that has an 1 1/8” pin for mounting on stands and can be used with “t-rex” arms for pipe mounting.

Sunray’s new Translyte Ladder System consists of a 2-piece webbing with “D” rings on top and bottom for easy rigging and a single circuit 14-tube or unique two circuit 28-tube wiring loom. The ladder system can be loaded with all one Kelvin temperature tubes or can have a blend of tungsten and daylight tubes to achieve the desired Kelvin temperature.

The Sunray Phil-lyte LED Coop is a retrofit of standard coops with 20 FilmGear T12 24” LED tubes. It uses recessed Edison connectors for power and is supplied with a two circuit wiring harness with locking end caps. The Sunray Phil-lyte coop can be outfitted with tungsten, daylight or a blend of LED tubes.

Sunray LED Lights

About Sunray

SUNRAY is recognized worldwide as an innovative designer of HMI lighting fixtures for more than 30 years. SUNRAY was purchased by DADCO in 2009 and since has designed a new line of SUNRAY HMI and TUNGSTEN lighting fixtures in addition to the Translyte LED Systems.


DADCO and Filmgear, with more than forty years of combined experience in lighting technology, produce these Translyte LED Tube Lighting Systems–made by IATSE Local 728 technicians—in the DADCO/Sunray Sun Valley, CA manufacturing facility.
DADCO was founded in 1995 by Ron Dahlquist. Dahlquist, the designer of the 24kW Challenger HMI and along with Wally Mills, developed the G4 24kW HMI, has been a leading innovator of lighting and power distribution systems in motion picture and television lighting. He is a long time member of I.A.T.S.E. Local 728, former Chief of the Set Lighting Department at PARAMOUNT STUDIOS and formerly President of KEYLITE PRODUCTION SERVICES, a leading independent lighting company in motion picture and television. He has been a leader in the initiation of the I.A.T.S.E. National Safety Training Program and also serves as a lecturer in that program to union locals nationwide and a consultant for motion picture and television industry safety programs globally. DADCO is a signatory with I.A.T.S.E. Local 728.

About FilmGear

Shortly after its introduction in 2002, FilmGear lighting gained an uncommon popularity in the industry worldwide. FilmGear is no newcomer to the business due to its earlier activities in OEM lighting manufacturing for large rental group in motion picture & video. FilmGear lighting covers Daylight Fresnel, Par, Ballast, Tungsten Fresnel, Space Light, Fluorescent, Studio Soft lights, Open Face, Kits for Tungsten, HMI, Fluorescent & Batteries and much more.
