BONd7 The 7″ 1024×600 Monitor:

BON are broadcast monitor makers who have been at it since 1986 and they have a new line up of monitors coming out. The BONd7 is a 7″ monitor with HD / SD-SDI, HDMI, 3G SDI level A/B inputs that will work well coupled to a camera helping Shooter, Producer, Focus Puller, and Field Editor get the job done by being able to record straight to an SD card from the screen. Recording to a SD card allows for instant playback from a secondary source, and not upsetting the original recorded files.

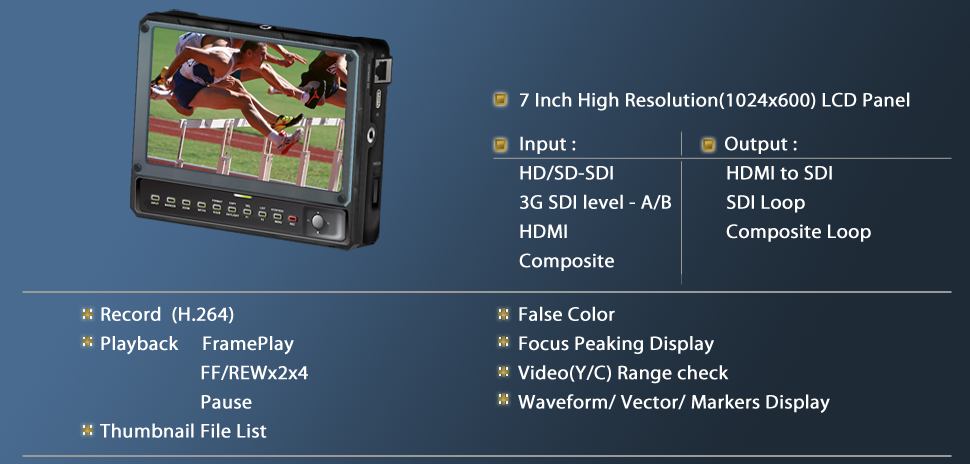

Featuring H.264 recording with FramePlay Fast Forward Rewind 2X and 4X speeds, Pause, Thumbnail File List, False Colour, Focus Peaking Display, Video Y/C Range Check, Waveform / Vector / Makers Display, it sure is a feature packed little monitor.

BONd7 Monitor

BONd7

Input

HD/SD-SDI Input

1EA,HD/SD-SDI, 3G/1.485G/270M ,BNC Jack

Analog Input

1EA,Composite,BNC Jack

HDMI Input

1EA, HDMI, (with HDCP v.1.1), 19pin Female

Output

SDI Loop Output

1EA, Active Loop Output, BNC,Jack

Composite Loop Output

1EA, 1.0Vp-p, Active Loop Output, 75ΩBNC Jack

HDMI Conversion Out

1EA, HD/SD-SDI, BNC Jack

Input Signal Format

SMPTE 425M Level A/B

1920*1080p(60,59.94,50), Direct Mapping(MS1,2,3,4)

2*HD-SDI(3G),SMPTE 292M*2

SMPTE 274M

1920*1080i/60,59.94,50,24sf, 23.98sf
1920*1080p/30,29.97,25,24,23.98

SMPTE 296M

1280*720p/60,59.94,50

SMPTE 260M

1920*1035i/60,59.94

SMPTE 259M,125M

720*480i/60,59.94

ITU R-BT.656

720*576i/50

HDMI

~1920*1080/60i(Refer to List of Compatible HDMI Formats)
Including HDMI to SDI Out

Analog(Composite)

1.0Vp-p(with sync), NTSC/PAL

I/O Port

GPIO Port

1EA, TTL Level, RJ-45 Jack

USB Port

1EA, Update

Tally Output Control

Sink Current 0.5Amax, with RJ-45 Jack

LCD

Size

7.0”(LD070WS1-SL02_Transflective)

Resolution

1024 * 600

Pixel Pitch

0.05 * 0.150 mm

Color

6bit+2bitFRC,16.7M

Viewing Angle(deg)

R/L:170, U/D:170

Luminance of White

400 cd/m²

Contrast

800 : 1

Surface Treatment

Transflective (option)

Display Area (H X V)

153.6 X 90.0 mm

Power Requirements

DC 7V ~ 36Vmax or AC Adaptor(100 – 230V,50Hz/60Hz)

Power Consumption

0.? – ?A(??W)

Operating Temperature

-10°C ~40°C

Operating Humidity

20% ~ 80% RH

Weight (without Stand & Packing)

750g(preliminary)

Dimension(W*H*D) w/o Box & Stand

182 x 141 x 36 mm

Accessory

•AC Adaptor •Manual (CD) •Mini DC Jack •SD Memory Card

Option

•Rack Mount •Hood & Carring Case •Sunvisor
