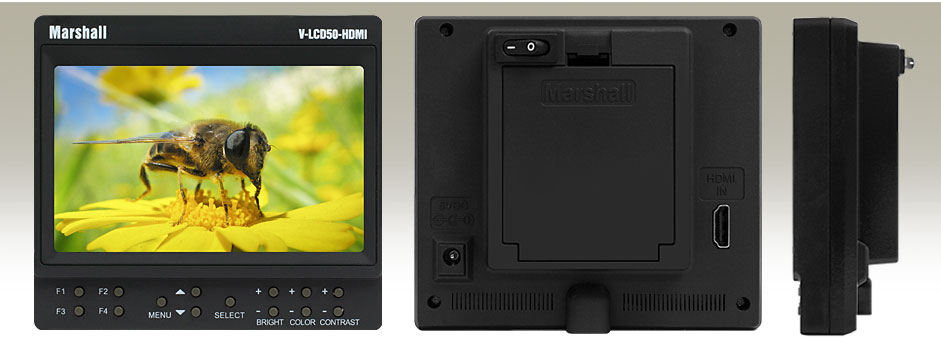

The Marshall 5″ LCD50 HDMI Portable Field Monitor:

Abel Cine Tech with their at the Bench series tried out the The Marshall V-LCD50-HDMI monitor. This Marshall monitor comes with a hot shoe adapter and comes pretty well ready to be used with a rig camera set up all you need is to supply your own HDMI cable.

Marshall’s 5″ LCD50-HDMI Portable Field Monitor from Abel Cine Tech on Vimeo.

The V-LCD50-HDMI offers standard features including a wide variety of formats and markers, 4 user-configurable front panel function buttons, RGB Check Field / Field Detect, RGB gain and bias control. Major features include Marshall’s industry leading FALSE COLOR and PEAKING Filters, along with Image Flip, Freeze Frame, and HDMI Auto Color Space and Ratio detect.

Tech Specs
Screen Size (Display Area) 5-inch Diagonal
Resolution (Pixels) 800 x 480
Viewing Angle L+R: 170° / U+D: 170°
Brightness (in cd/m²) 300
Contrast Ratio 600:1
Input HDMI x 1
Dimensions 4.86″W x 4.40″H x 1.84″D
Power Consumption 1.25 Amp @ 5VDC
Weight .55 lbs. (250g)

See Abel Cine Tech for more

Please visit Marshall Monitors for info.
