The newly designed PS-Cam X35 closes the gap between analog sync-sound cameras and top-end high-speed cameras, which has accrued due to digitization. On the analog side there were analog film cameras with speed rates up to 150 fps known as robust and flexible. On the digital side high speed rates were only available when using highly specialized camera systems. Now the smart designs of the new PS-Cam X35 will combine benefits of sync-sound and higher speed rates into one flexible and robust all-purpose digital camera.

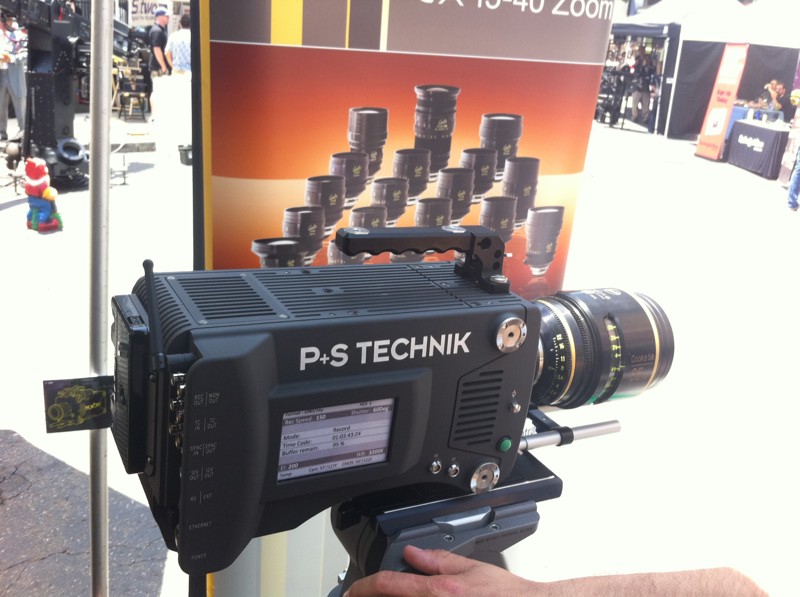

Thanks to RadRaven at Cine Gear Expo 2011 for the pic.

All-purpose slow motion camera for flexible application
Combines analogue sync-sound camera and digital highspeed
1 – 450 fps (continuously adjustable) e. g. 24, 48, 60, 75, 150, 300, 450 fps
11 T-stops
HD-SDI 1,5 G & 3 G

TV Drama
Music clip

The all-purpose concept of the PS-Cam X35 allows speed rates and enhanced picture quality with 11 T-stops in normal speed & high speed. In addition it provides higher speed rates up to 450 fps maximum. The internal memory is 18 GB and allows recording of more than 4min in normal speed (memory upgrade to 36 GB planned). The switchable HD-SDI interface in 1,5 G & 3 G ensures using existingand future-proofed HD-SDI recorders on the market.


Lens Mount: PS-IMS Various IMS mount adapters available

Resolution: Full HD 1920 x 1080 HD 1280 x 720 2K planned

Sensor Capture Size: Full HD 21.1 x 11.9 mm (diagonal 24.2 mm) HD 14.1 x 7.9 mm (diagonal 16.1 mm)

Frame Rates: Standard Speed Range 24 – 60 fps (direct HD-SDI output)
All Speed Range 1 – 450 fps (continuously adjustable) e. g. 24, 48, 60, 75, 150, 300, 450 fps

Capture Processing Dynamic Picture Quality Enhancement 2D & 3D application S3D compatible Recording High Definition 4:2:2 10 Bit uncompressed 4:4:4 10 Bit (option planned) RAW 12 Bit Uncompressed (option planned) Internal Memory 18 GB 4:08 min @ 24 fps (max) 0:40 min @ 150 fps (max)
36 GB option planned

Interface: Output 2 x HD-SDI (switchable 1,5 G / 3 G) Time Code TC In/Out Genlock Genlock In/Out Control RS232 / USB / GigE / WLAN (planned)

Power: Camera 12 V – 30 V, apprx. 90 W Accessories 12 V; 30 W; 24 V; 60 W

Dimensions: LxBxH Apprx. 343 mm x 157 mm x 179 mm

Weight: Apprx. 8.5 kg
