That Axiom Open Module Concept Camera Has Swappable Sensors, Filters & More:

Swappable Image Sensor Module, Swappable Lens Mount, Swappable Filters… Reality Check; it is all there on the latest update about that open source 4K s35mm Axiom Alpha prototype camera with the CMV12000 image sensor.

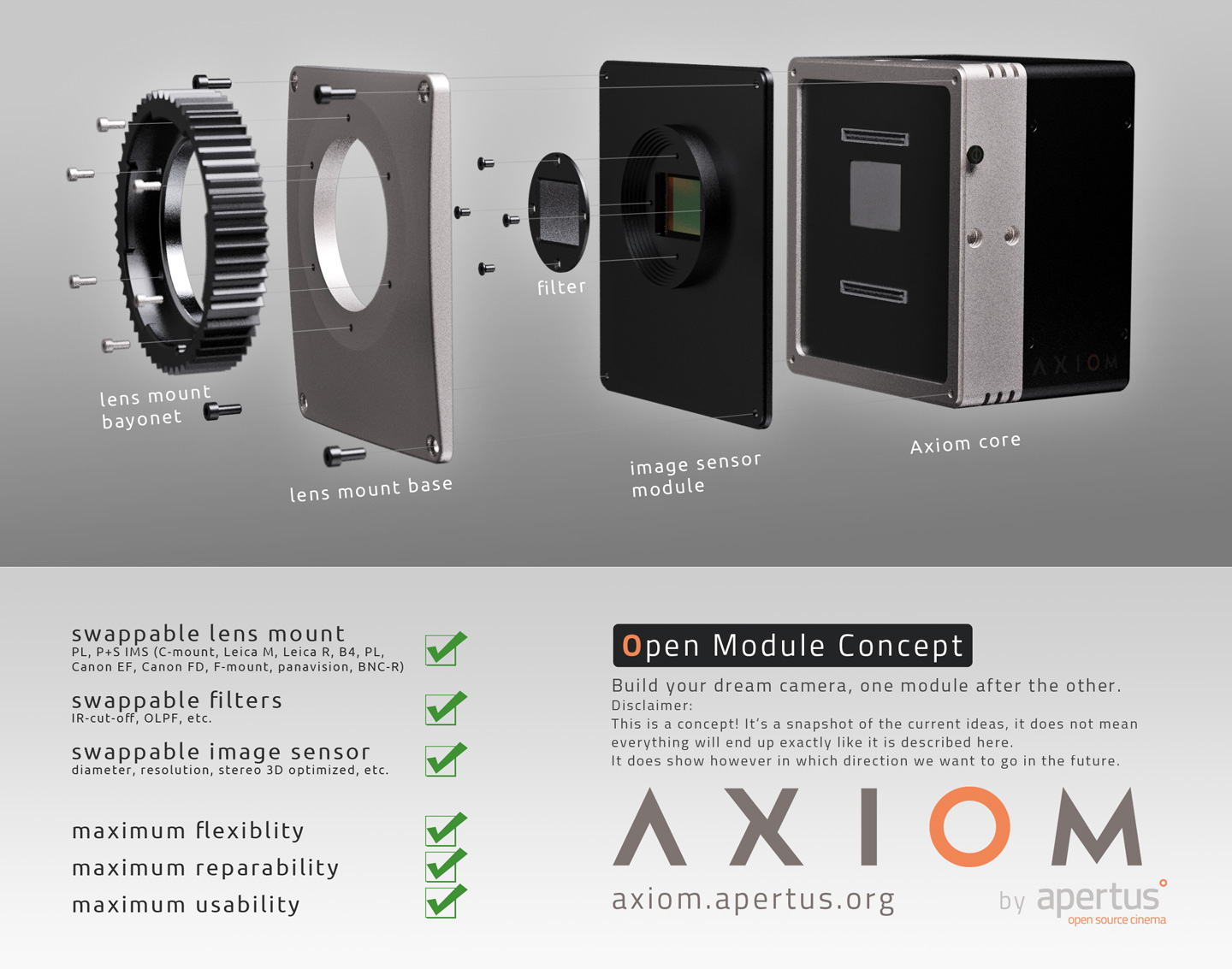

open-modules-concept

Swappable Image Sensor Module
The Axiom Alpha prototype with the CMV12000 image sensor is just the beginning, we want to offer a wide range of different image sensor modules in the future. Whether it be a Super16, Four Thirds or Full Frame Sensor or a module that allows fine-tuning the sensor alignment shift for Stereo 3D, there are so many possibilities. And since we rely on FPGA based designs for image processing, the camera head (Axiom core) will less likely be a limiting factor for processing the data of a different image sensor.

Swappable Lens Mount
We plan to utilize the IMS Mount system from P+S Technik, allowing us to mount: PL, Canon EF, Canon FD, F-mount, B4, C-mount, Leica M, Leica R, panavision and BNC-R lenses to the Axiom. But it doesn’t stop here – We also want to make the lens mount base itself interchangeable. This will mean that anyone can manufacture their own lens mounts (utilizing CNC mills or 3D printers as an example) or buy existing mounts from various sources. The distance between the image sensor plane and the lens mount (the so called FFD will be kept extremely short so as to allow for maximum flexibility with a range of lens mount systems.

Please see apertus for more information about the Axiom Alpha camera, the swappable filters and of course the reality check.
