Nikon D800 2 Movie Recording Modes Offering Shallow Depth-of-Dield:

Multi-area mode Full HD D-Movie for movie recording using one of two movie formats

The Nikon D800 DSLR camera records movies exhibiting superior resolution with optimal processing of information acquired from the 36.3-million pixel image sensor. Recording of 1920 x 1080p/30-fps full-HD movies is supported, and users can choose to record using the FX-based movie format or the DX-based movie format according to recording conditions. The FX-based movie format offers a shallow depth-of-field with an emphasis on blur characteristics while the DX-based movie format enables recording of movies that bring subjects closer when lenses with short focal lengths are used.

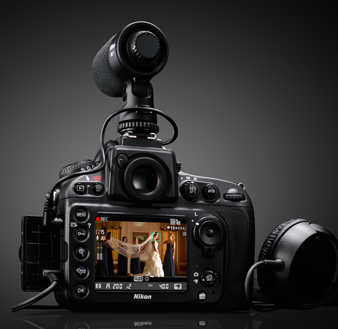

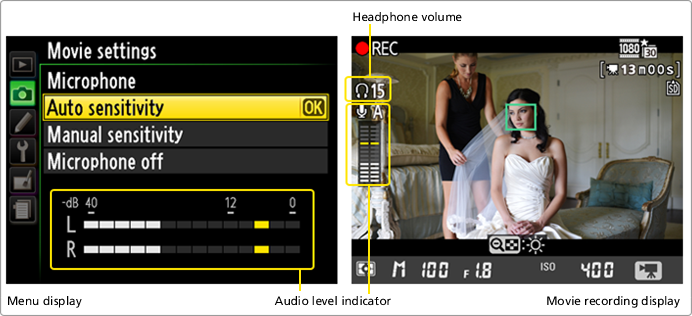

The Nikon D800 DSLR is also equipped with a headphone jack and supports precise adjustment of microphone sensitivity. In addition, it supports simultaneous display of movies or the movie live view display in the camera monitor and on an external monitor. Further, the Nikon D800 responds to the needs of professionals who require uncompressed movie files with the ability to record movies directly to an external HDMI recorder in movie live view mode. The Nikon D800 also offers a time-lapse photography function that captures images at a selected interval and then combines the images to create a time-lapse movie that shows the changes in a particular scene that occur over time.

Joy Ride by Sandro:

Joy Ride BTS by Sandro:

Full HD video quality and minimized rolling shutter effect: Dynamic movie shooting in diverse lighting situations

Many filmmakers, multimedia professionals and still photographers need the highly mobile, lightweight and compact form of a D-SLR in order to cover large events or make documentaries, music videos or movies. For these professionals, the D800/D800E are ready to create true cinematic experiences. By using the B frame data compression method, you can record 1080p Full HD video at 30p in H.264/MPEG-4 AVC format with unmatched moving image integrity for up to approx. 29 min. 59 s* of recording in a single clip. Thanks to Nikon’s latest image-processing optimizations, the monumental power of 36.3 megapixels transforms to sharp, exquisitely rendered videos. Expect exceptionally smooth gradation in blue skies, with minimum block noise and beautifully natural movement rendered clearly and sharply. The D800/D800E’s intelligent image sensor reads out movie images at faster rates than ever, significantly reducing the rolling shutter distortion that can occur during panning shots or when shooting fast-moving lateral subjects like trains. Thanks to EXPEED 3, your movies will take on a distinctive look of their own, even with dimly lit scenes. Combine these benefits and you’ll begin to realize exactly the new creative opportunities possible for photographers and cinematographers alike.

*Maximum recording time varies according to frame rate, frame size and image quality settings. Maximum recording time for time-lapse photography is 20 min.

Multi-area mode Full HD D-Movie: Creative movie-making freedom in FX- and DX-based formats

The D800/D800E are designed to stimulate cinematographers to explore different moods and perspectives by enabling Full HD and HD video recording in two frame formats; Nikon FX- and DX-based movie formats in just one camera. When using wide-aperture NIKKOR lenses, the large image area of the FX-based format* renders exquisitely shallow depth of field with beautiful bokeh effects. The DX-based format uses an image area similar to 35mm movie film, allowing cinematographers to shoot with picture angles that they are accustomed to. Having the advantage of two D-Movie formats in one camera and an arsenal of NIKKOR lenses makes the D800/D800E an incredibly versatile movie-making tool.

*The aspect ratio of movies is 16:9 whichever format is selected. Also, in the FX-based movie format, the width of the image area is approx. 91% of that in the still image FX format.

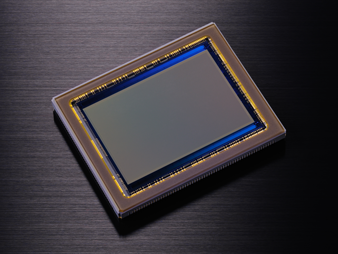

New Nikon FX-format CMOS image sensor

The D800 is equipped with a new Nikon FX-format CMOS image sensor and the new EXPEED 3 image-processing engine for Nikon digital SLR cameras. This new image-processing engine is faster and offers greater performance. The camera also offers the world’s highest* effective pixel count of 36.3-million pixels. When combined with the sharp rendering of NIKKOR lenses, images exhibiting resolution equal to that achieved with medium-format digital cameras are possible.

The D800 also responds to the demands of professional photographers with a standard sensitivity range of ISO 100–6400, and additional support for equivalents of ISO 50 (Lo 1) and up to ISO 25600 (Hi 2), for superior image and picture quality in dimly lit situations, such as just before sunrise and just after sunset, with shooting of still images as well as movie recording.
*Among interchangeable lens digital SLR cameras equipped with image sensors conforming to the 35-mm film size as of February 7, 2012

New 91K-pixel RGB sensor for the more accurate Advanced Scene Recognition System

The D800 is equipped with a new 91K-pixel (approximately 91,000 pixels) RGB sensor. When a human face is detected in the frame, 3D Color Matrix Metering III bases exposure control on the brightness of that face so that the face is optimally exposed even with backlighting. In addition, the superior resolution of the metering sensor, which makes full use of an incredible 91,000 pixels, enables extremely precise analysis of the scene for more accurate control over autofocusing, auto exposure, i-TTL flash control, and auto white balance.
*There is no display in the viewfinder that shows when a face or faces have been recognized.

Viewfinder frame coverage of approximately 100%*1 and a lightweight and durable water- and dust-resistant body

The viewfinder built into the D800 supports a frame coverage of approximately 100%*1 and magnification of approximately 0.7x*2. Adoption of a magnesium alloy for the body gives the camera the same level of durability as the D700 with a weight approximately 10% less.
*1With FX-format image area
*2With 50-mm f/1.4 lens at infinity, -1.0 m-1

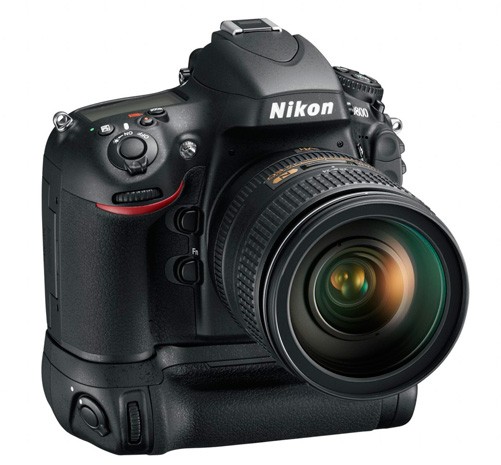

Support for high-speed continuous shooting and a variety of battery types with the Multi-Power Battery Pack MB-D12 (optional)

The MB-D12 supports the Rechargeable Li-ion Batteries EN-EL15 and EN-EL18, common AA batteries, and the AC Adapter EH-5a/b (with Power Connector EP-5B). When the MB-D12 is mounted on the D800, high-speed continuous shooting at approximately 6 fps* using the DX-format image area is possible. The MB-D12 also offers the added convenience of controls, including shutter-release button, AF-ON button and multi-selector, for vertical shooting. What’s more, the same seals as those used for the D800 with its magnesium body offer superior resistance to dust and water.
*When powered by the AC adapter, or AA batteries or Rechargeable Li-ion Battery EN-EL18 with the MB-D12. Measured according to CIPA guidelines.

Other D800 Functions and Features

A 51-point AF system for improved subject acquisition and focus performance under dim lighting. In addition, 11 focus points (five at center with an addition three to each side) are fully functional when lenses with a maximum aperture of f/8 are used.
A 3.2-inch, approximately 921k-dot LCD monitor with reinforced glass, automatic monitor brightness control, and wide viewing angle
A virtual horizon that shows the degree to which the camera is tilted sideways (roll), or forward or backward (pitch) with display in the monitor and viewfinder
A new shutter unit that has passed testing for 200,000 cycles and supports a maximum shutter speed of 1/8000 s and flash sync speed of 1/250 s
Continuous shooting at 4 (FX-format/5 : 4 image area) or 5 (DX-format/1.2x image area) fps*
*When powered by a Rechargeable Li-ion Battery EN-EL15

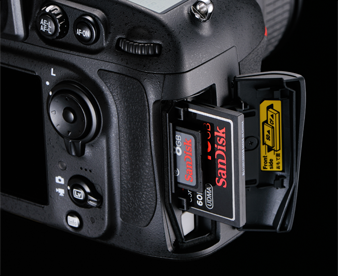

CompactFlash and SD dual memory card slots
Support for SuperSpeed USB (USB 3.0)

The D800E with specifications for even greater resolution with an effective pixel count of 36.3-million pixels

In-camera disabling of the aliasing and moiré pattern reduction operation performed by the optical low-pass filter built into the D800E allows light passing through a NIKKOR lens to strike photodiodes directly for even greater resolution. This makes this model optimal for landscape and artistic photography with which higher resolution and clear definition is demanded. With the exception of the modification indicated above, all other functions and characteristics are the same as with the D800.

Aliasing and moiré patterns may be more noticeable in images captured with the D800E with some subjects, scenes or shooting conditions.
Optical low-pass filter IR coating and anti-reflection coating performance is the same with both the D800 and the D800E.

Price and Availability

The Nikon D800 will be available in late March for the suggested retail price of $2999.95.1 The D800E version will be available in mid April 2012 for a suggested retail price of $3,299.95.

Visit the Nikon D800 Micro site.

Download the full detailed Nikon D800 PDF.
