Astro 2k SSD ARRIRAW Recorder now Approved for Alexa:

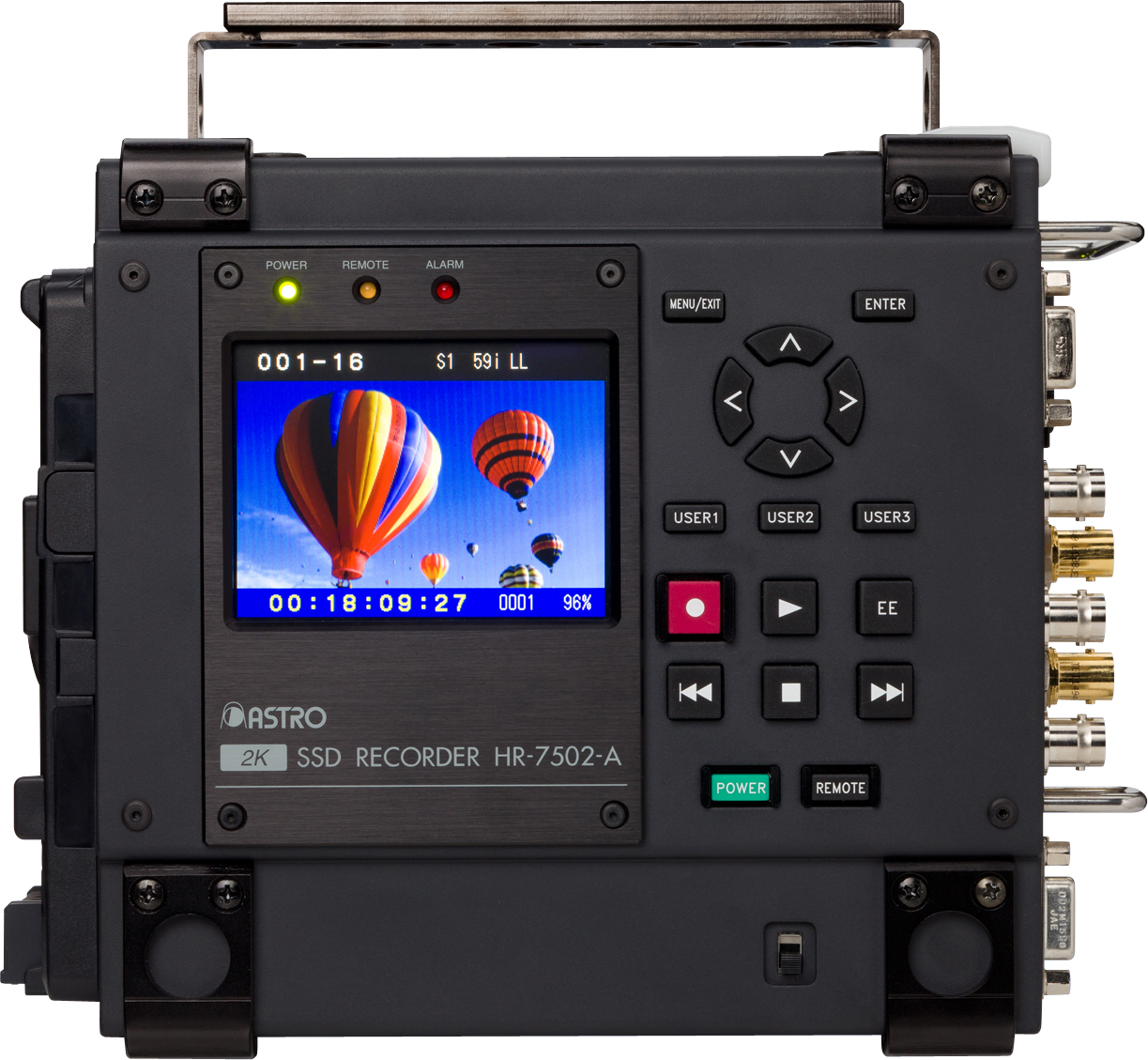

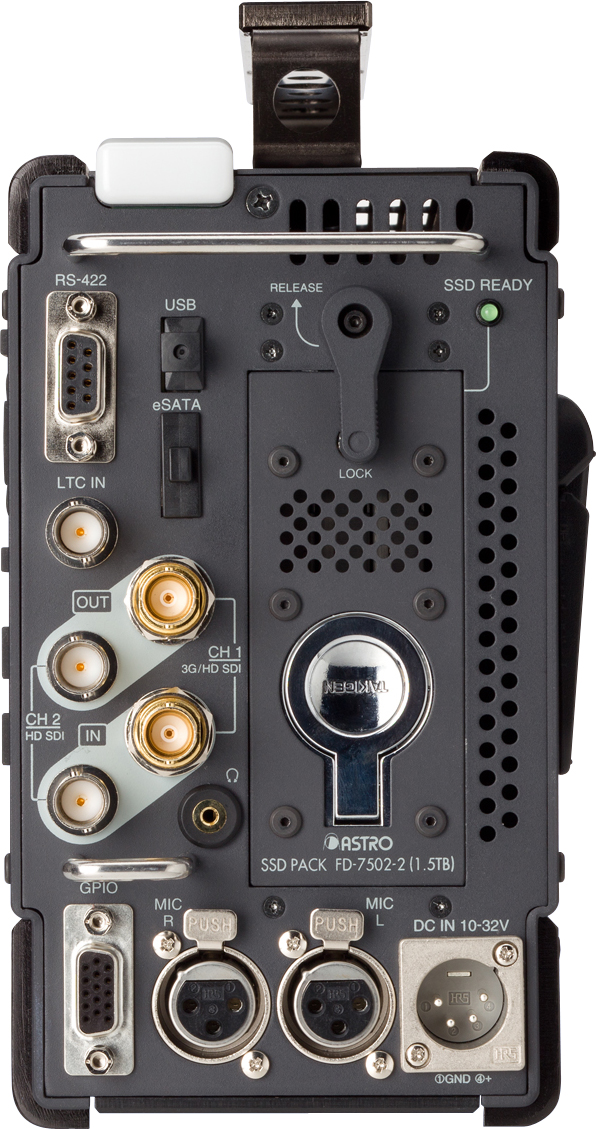

Astrodesign the high end digital video equipment developer and manufacturer, announced that the 2k SSD recorder HR-7502/-A has been successfully approved as ARRIRAW T-Link (Transport Link) certified recorder by ARRI.
ARRIRAW T-Link (Transport Link) certificate is provided only for the product which meets the following conditions and is confirmed by ARRI’s quite strict and high level evaluation process. The HR-7502-A is a small light weight recording system that supports the highest image quality and ease of use while providing a working alternative to the conventional VTR & HDD recording systems.

Thanks to Camera Department for the video:

-The product can reliably record the ARRIRAW T-Link stream.
(2880×1620, 16:9, at standard speeds of 23.976, 24, 25, 29.97 and 30fps)
-The product can reliably record the complete set of ARRIRAW metadata embedded in the T-Link stream.
-The product offers live-processed HD monitoring of the ARRIRAW stream while recording – including gamma conversion (1D LUT) compliant with “ALEXA Color Processing” provided by the ARRI LUT Generator.
-The product offers live-processed HD playback of the ARRIRAW stream including
gamma conversion (1D LUT) compliant with “ALEXA Color Processing” provided by the ARRI LUT Generator.
– The product can output raw data and metadata in a format that can be processed with the ARRIRAW CONVERTER, ARC version 2 and later.

This certificate guarantees that any ALEXA user with the combination of HR-7502/-A can enjoy high quality of ARRIRAW recording, monitoring, and data transferring including wide variety of metadata.

The ARRIRAW T-Link (Transport Link) has been developed to provide a simple and standardized method for sending raw data from ARRI cameras to an external recorder. In the case of the ARRI ALEXA camera, 16bit linear data is packed into a 12bit logarithmic format RGBA HD stream and transmitted over a standard SMPTE 372M dual link HD-SDI connection.

See Astro for more information.
